The Organizational Chart is a reflection of your organization's structure. This is a necessary part of the applicant tracking system, as it serves as the origin of posted job locations, which are required by all major job boards. The Org Chart provides for Regions and SubRegions (both of which are optional and usually used by larger organizations), as well as Locations, a requirement of all organizations. In order to configure your organization, go to Admin > Organization > Org Chart. Account Administrators have the necessary permissions to set up the structure of the Organization.
Organizational chart examples include:
- Listing individual business sites or stores separately as Locations
- Adding multiple Regions with locations directly under each

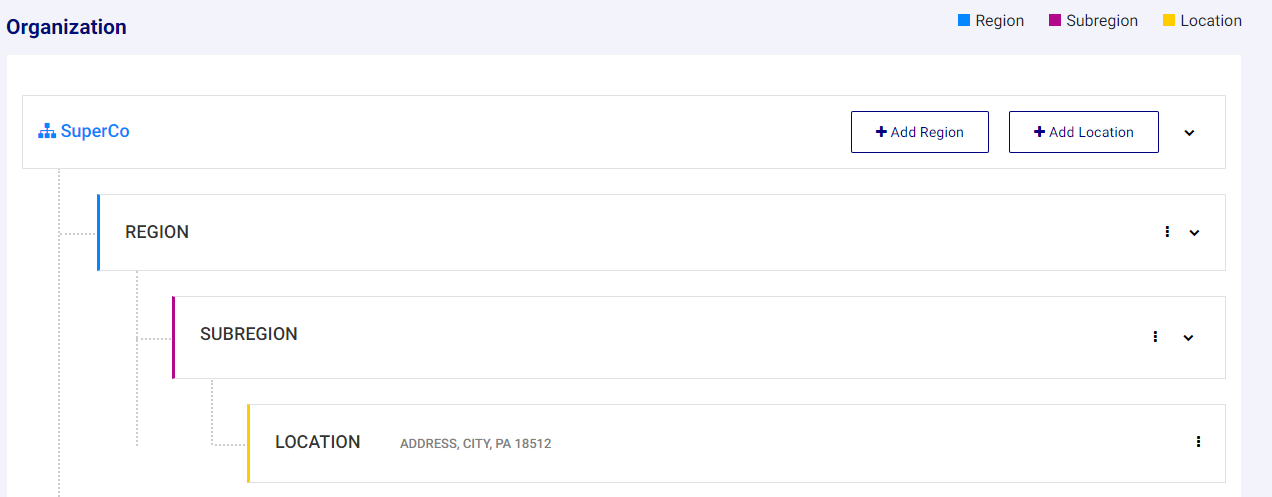

- Establishing geographical Regions and SubRegions with Locations underneath (as shown below)

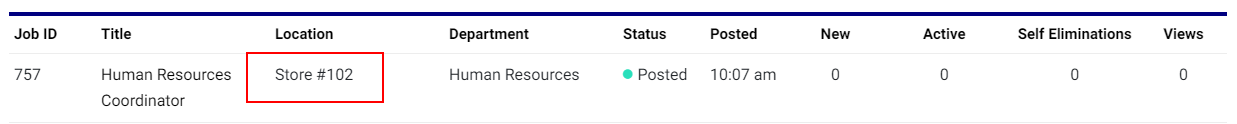

With the possibility of multi-branding with Sub-Brands and multiple locations within an organization, specifically in one geographic area, the Location Name field can be used to enter a unique name or identifier such as Warehouse, Site A, Store #102, etc. and optionally assigned to a Sub-Brand. The text typed in the Location field can be found in the Location drop-down in Step #4 when posting a job and is displayed in the location column on a user's My Jobs tab. Additionally, when used in combination with activating the Location Details of the Indeed Applicant Source, the Location Name and Sub-Brand will be appended to the Organization Name in the Indeed feed.
Note: The Location Name field can be used for internal reference only if the Location Details in the Indeed Applicant Source is deactivated.
Editing the Org Chart
Add a Region
- Click +Add Region and enter the name of the Region.
- Save by clicking the green checkmark.
- Once a Region is created, the ⋮ menu will provide a user with the option to Edit Region, +Add SubRregion, + Location, or Delete.
Add a SubRegion
- Open a Region’s ⋮ menu, select +Add SubRegion, and enter the name of the SubRegion.
- Save by clicking the green checkmark.
- Once a SubRegion is created, the ⋮ menu will provide a user with the option to Edit SubRegion, + Location, or Delete.
Add a Location
Location can be added in multiple ways to provide the most flexibility for your Organization.
- Add a Location to the Org Chart directly (without a Region or SubRegion):
- Click +Add Location directly from the Org Chart header.
- Enter the Location Name, Address, City, State, and Zip Code.
- Optionally, assign a Sub-Brand to the Location by clicking an available brand from the Add to Sub-Brand drop-down.
- When complete, select the green checkmark to save the location.
- Add a Location to a Region or a SubRegion:
- Click the ⋮ menu and select +Add Location.
- Enter the Location Name, Address, City, State, and Zip Code.
- Optionally, assign a Sub-Brand to the Location by clicking an available brand from the Add to Sub-Brand drop-down.
- Select the green checkmark to save the location.
- Once a Location is created, the ⋮ menu will provide a user with the option to Edit or Delete.
